Fibre cable, single mode - Type 4 SM

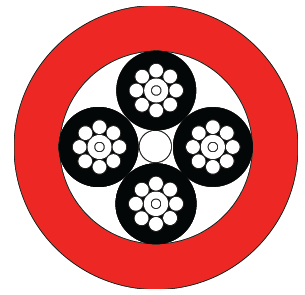

Construction characteristics

Fibre optic element: ROC ELEMENT: Fibre type: OFS Allwave FLEX ZWP. Fibre dimension: 9/125/250/600
um (4 each) Overall polyester tape
Outer jacket: Pressure extruded polyurethane outer jacket. Colour red

Mechanical characteristics

Diameter: 9.00 mm
Weight in air: 91 kg/km nom
Weight in seawater: 30 kg/km nom
Min. bending radius, static: 76 mm
Min. bending radius, dynamic: 90 mm
Breaking strength: 5.3 kN
Working load: 1.8 kN
Depth rating: 6,000 m
Operating temperature range: -40°C - +80°C

Fibre optical characteristics

Attenuation: ≤ 0.50 dB/km at 1310 nm
≤ 0.30 dB/km at 1550 nm
